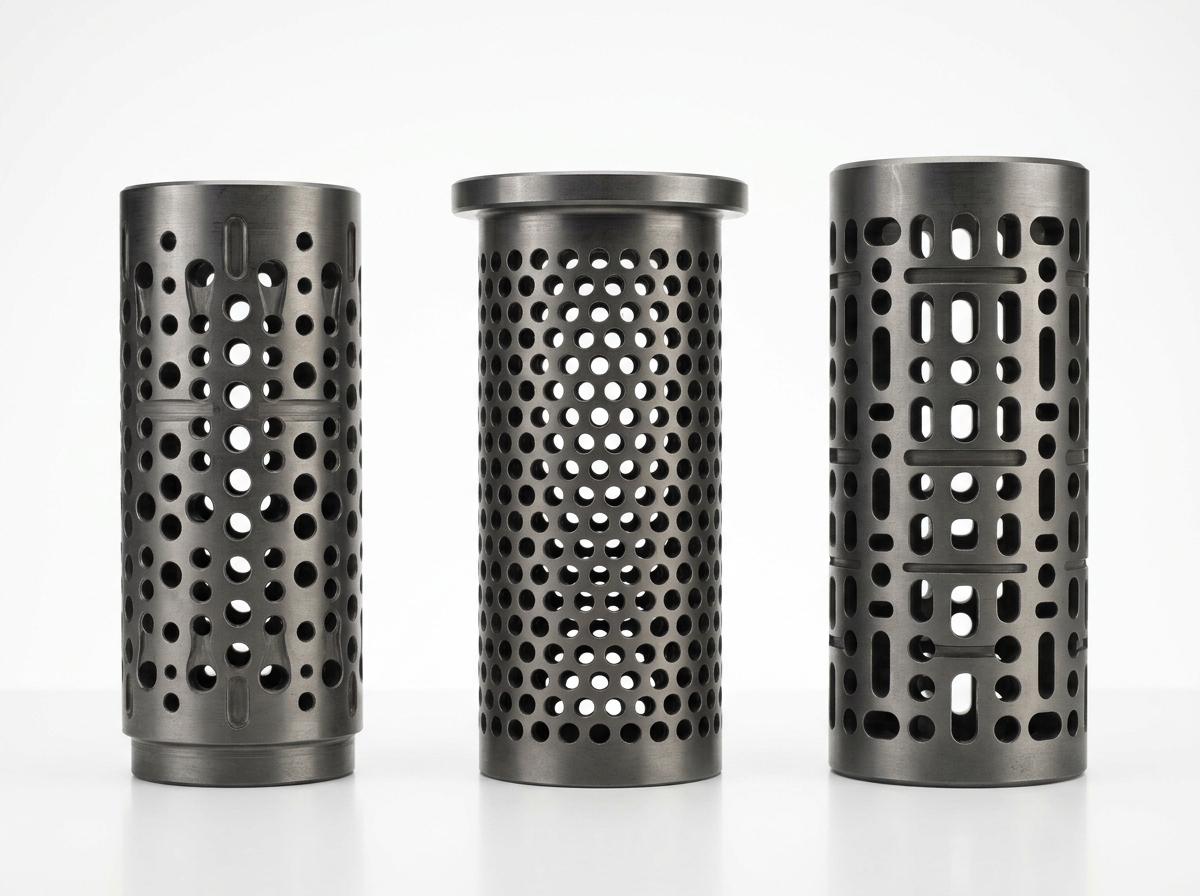

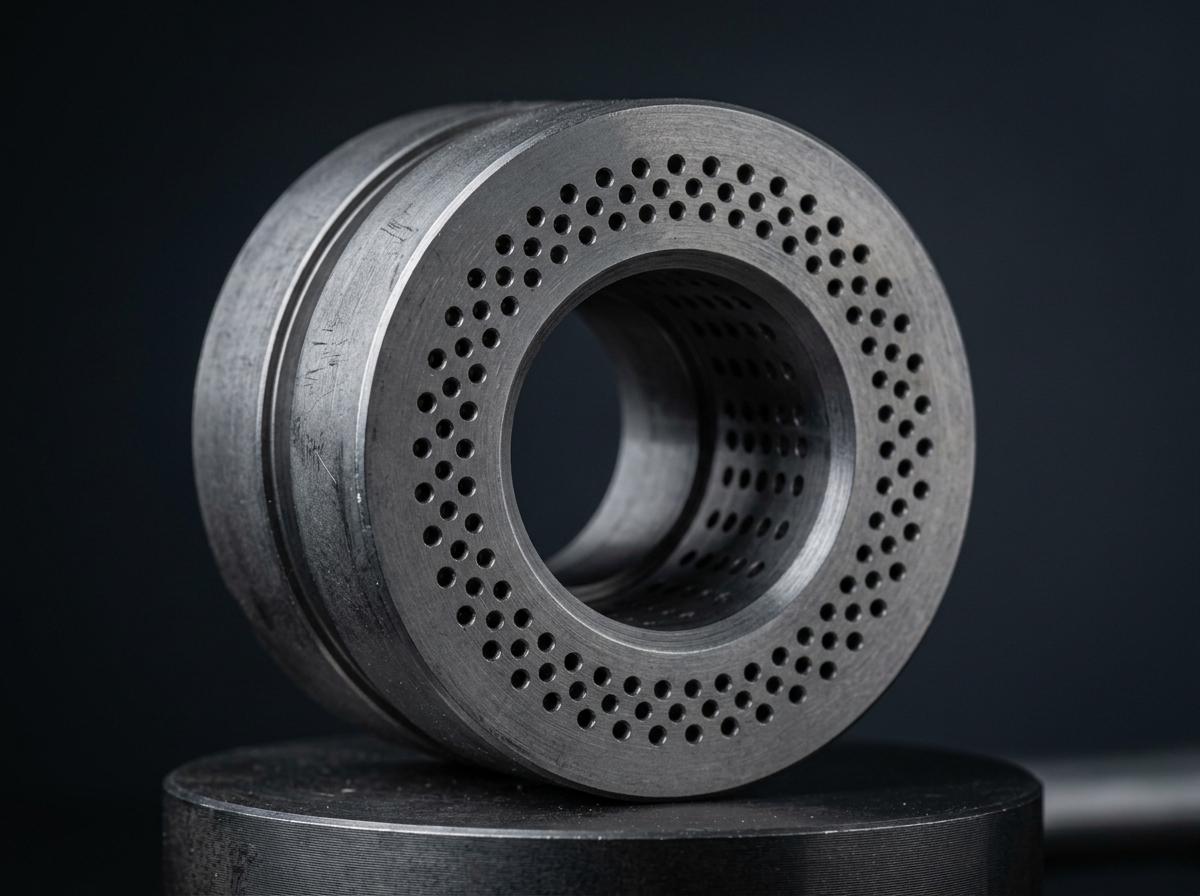

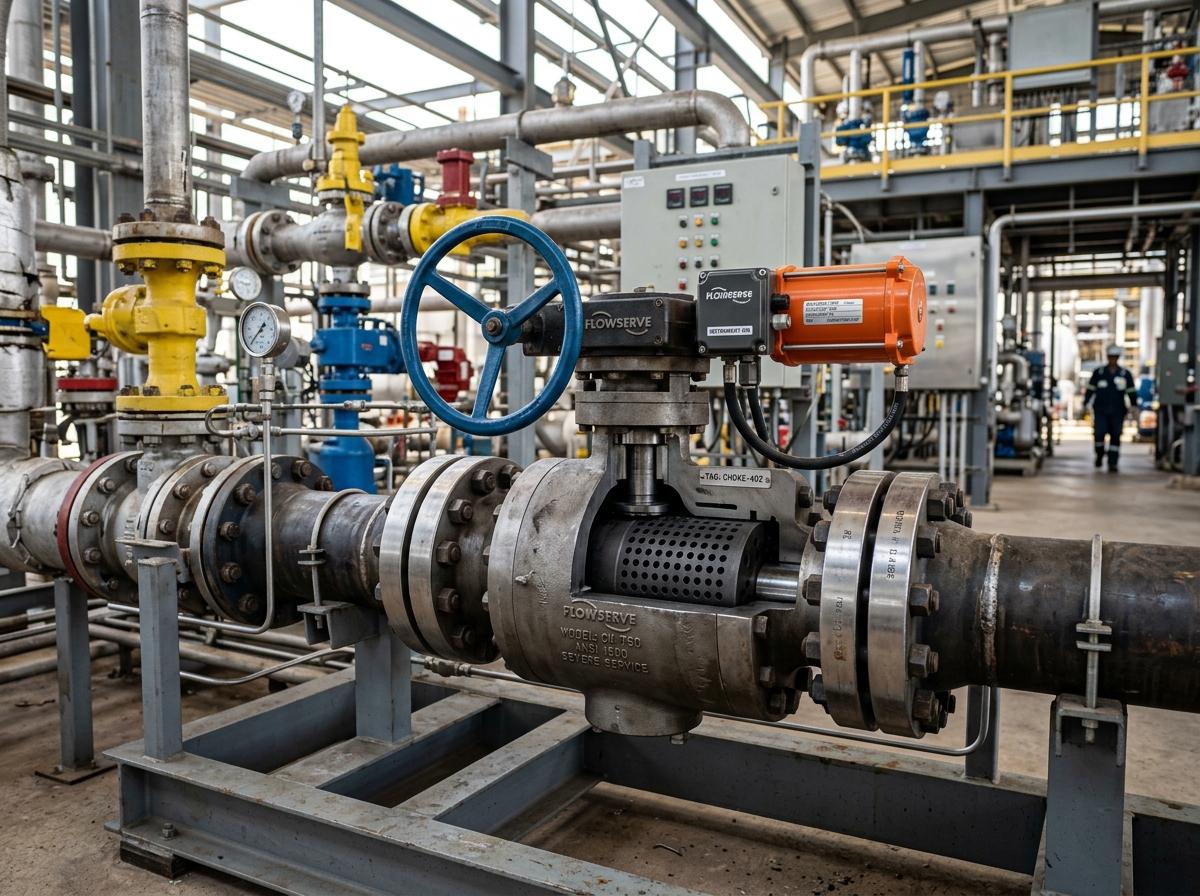

Carbide Choke Valve Cages for Severe Flow Control and Erosion Resistance
High-performance tungsten carbide choke cages engineered for oil and gas, energy, and process systems facing high differential pressure, sand-laden media, and aggressive flow conditions.
Talk on WhatsAppKey Features & Benefits
Manufacturing details, inspection discipline, and RFQ clarity for industrial buyers.
Excellent Erosion Resistance
High-velocity, particle-containing, and severe throttling conditions with hardness HRA 87.0-91.5.
Flow-Path Customization
Improve service life, flow stability, and pressure reduction behavior with custom flow-path design.
Material Options
WC-Co for high wear resistance; WC-Ni for corrosive media environments.
Precision Machining
Critical features including orifices, windows, bores, and locating surfaces with tight tolerances.
Multiple Structures

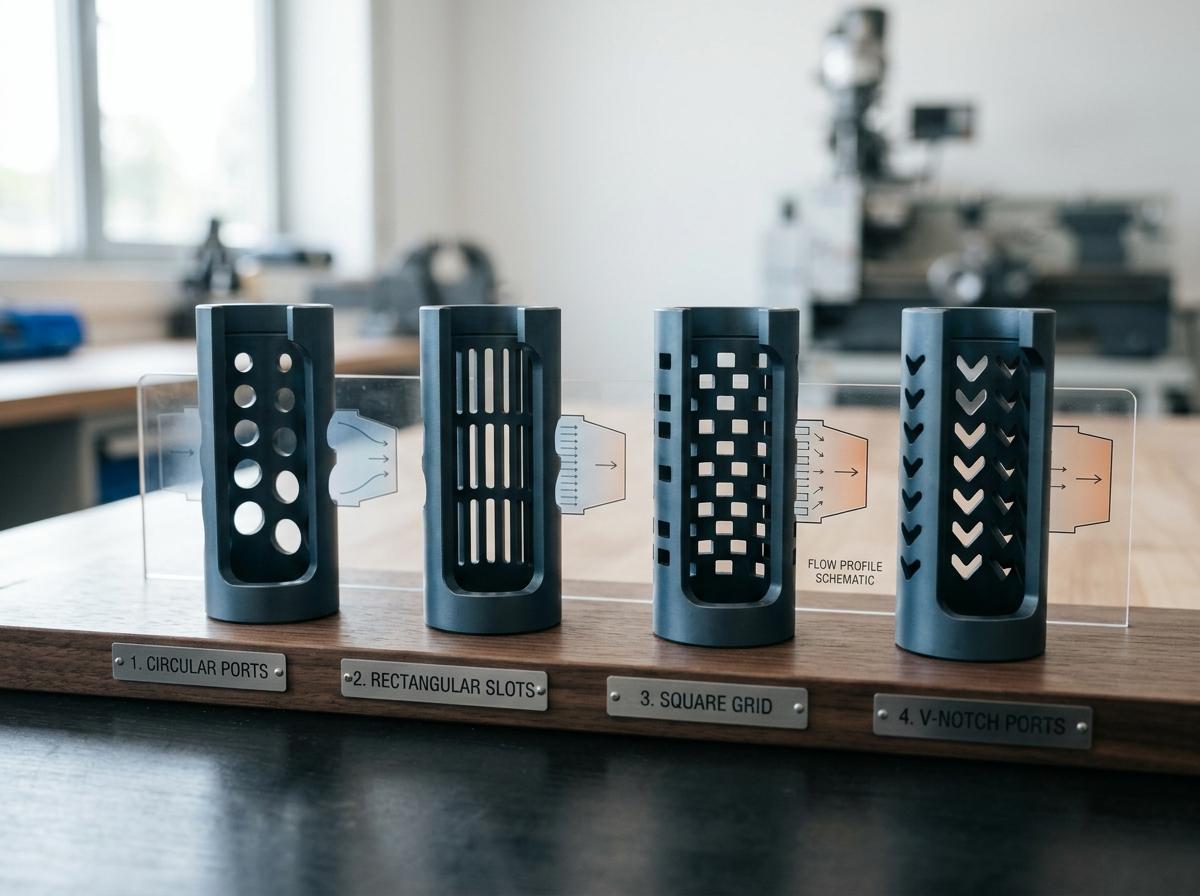

Single-hole, multi-hole, window, and labyrinth designs for different pressure drop requirements.
Oil & Gas Service
Designed for demanding oil and gas service where reliability directly affects uptime.
Hard Proof for Buyers
Production, inspection, packing, and delivery evidence for Carbide Choke Valve Cages for Severe Flow Control and Erosion Resistance
Industrial buyers need more than broad claims like high performance or stable quality. This section shows the practical proof points we can discuss before quotation: factory workflow, inspection control, report availability, MOQ, lead time, packing, and export support.
What a serious RFQ can request
Factory photos
Equipment / process route
Inspection records
Material report sample
Packing photos
MOQ and lead time
Export terms
Industry use case
Inspection equipment and records
Dimensional checks, surface review, batch identification, and inspection records can be aligned with the product drawing, specification, or repeat-order requirement.
Drawing and specification review
Engineering RFQs can include drawings, samples, grade targets, tolerance notes, working conditions, and report requirements before quotation.
Export packing and shipment support
Protective packing, labeling, batch notes, and export-ready documentation are considered before sample, trial, or production shipment.
Procurement details we can confirm before order
MOQ: confirmed by grade, size, drawing complexity, and trial or repeat-order demand
Sample / trial order: available for qualified RFQs where size, quantity, and application are clear
Lead time: quoted by stock status, tooling route, machining complexity, inspection scope, and order quantity
Reports: material report, dimensional inspection record, and shipment photos can be discussed before order
Tolerance: typical capability is reviewed against drawings, process route, and critical working surfaces
Export support: protective packing, marking, trade terms, and destination requirements can be aligned before shipment
Quality system: batch traceability, incoming material review, and final inspection are available for repeat supply
Confidentiality: drawings and samples are used for quotation/manufacturability review; NDA available on request

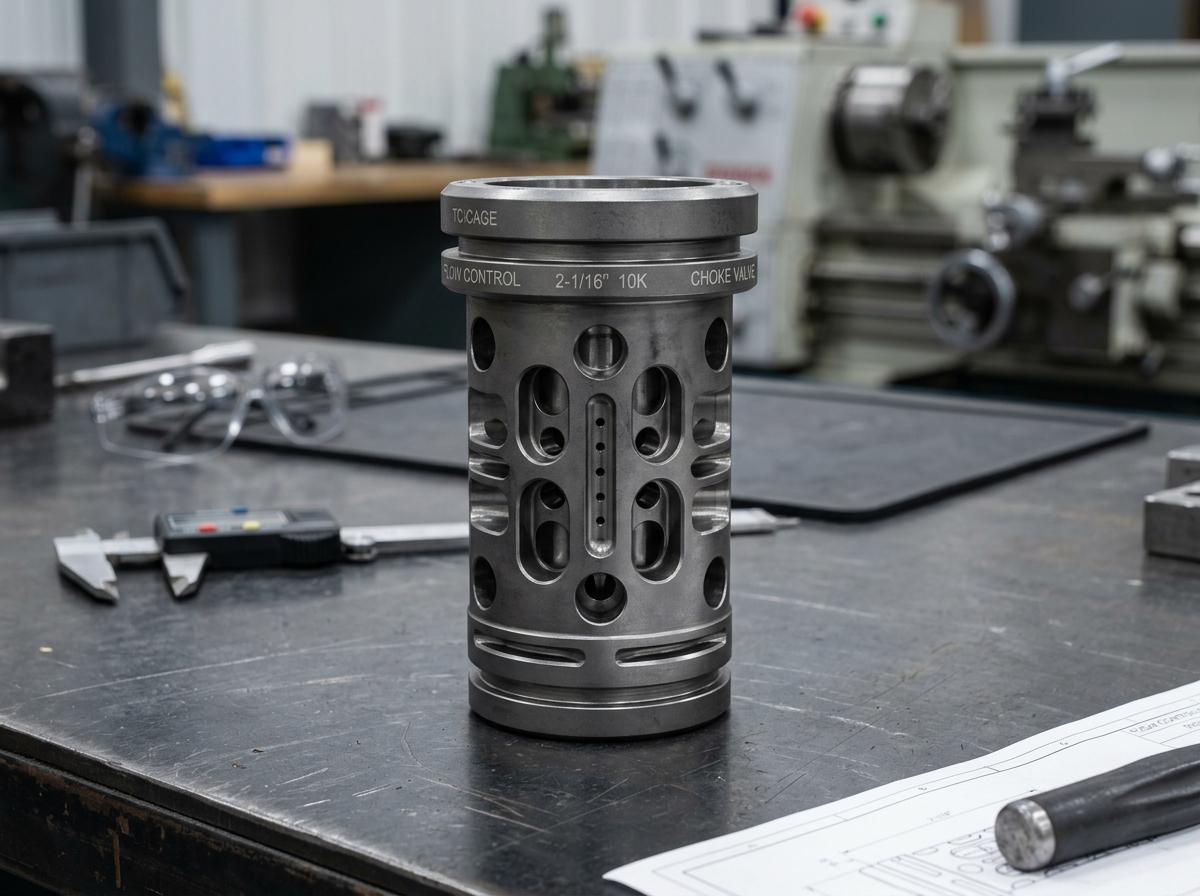

Technical Specifications
Detailed parameters for your engineering requirements
| Material System | WC-Co / WC-Ni |
| Density | 13.8-14.9 g/cm³ |
| Hardness | HRA 87.0-91.5 |
| Transverse Rupture Strength | 2200-3200 MPa |
| Structure Options | Single-Hole, Multi-Hole, Window, Labyrinth |
| Flow Design | Axial Flow, Radial Flow, Multi-Stage |
Application Areas
Application-specific supply for industrial production and maintenance teams.

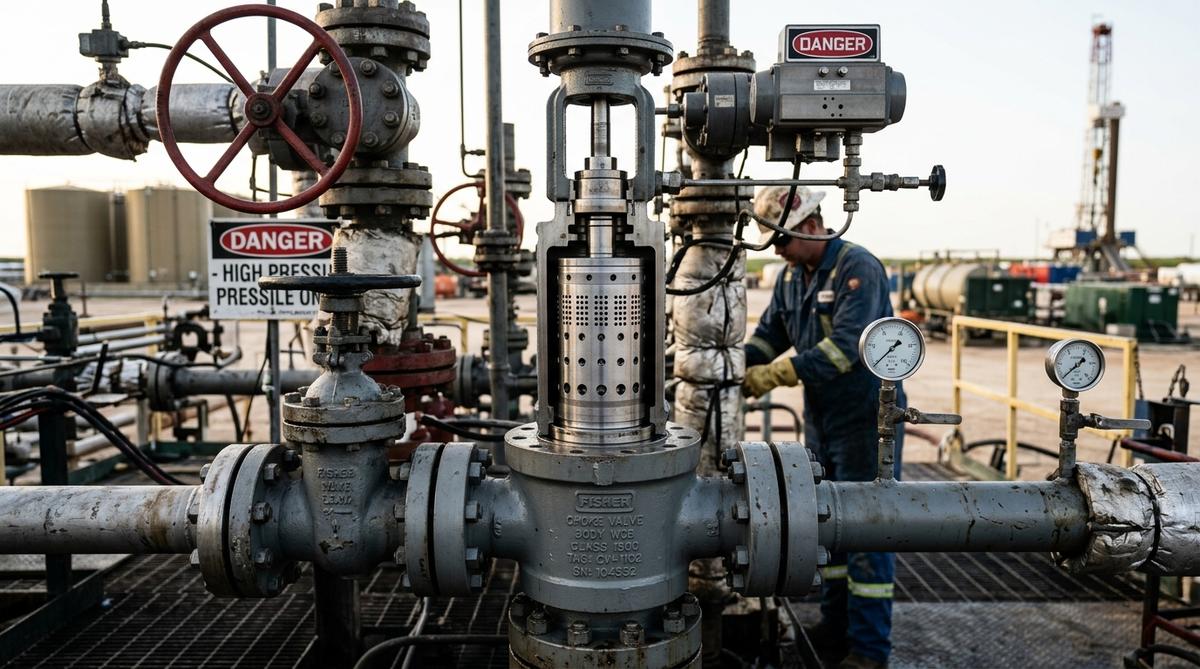

Wellhead Systems
Choke valves and control assemblies exposed to high pressure, sand production, and severe throttling.

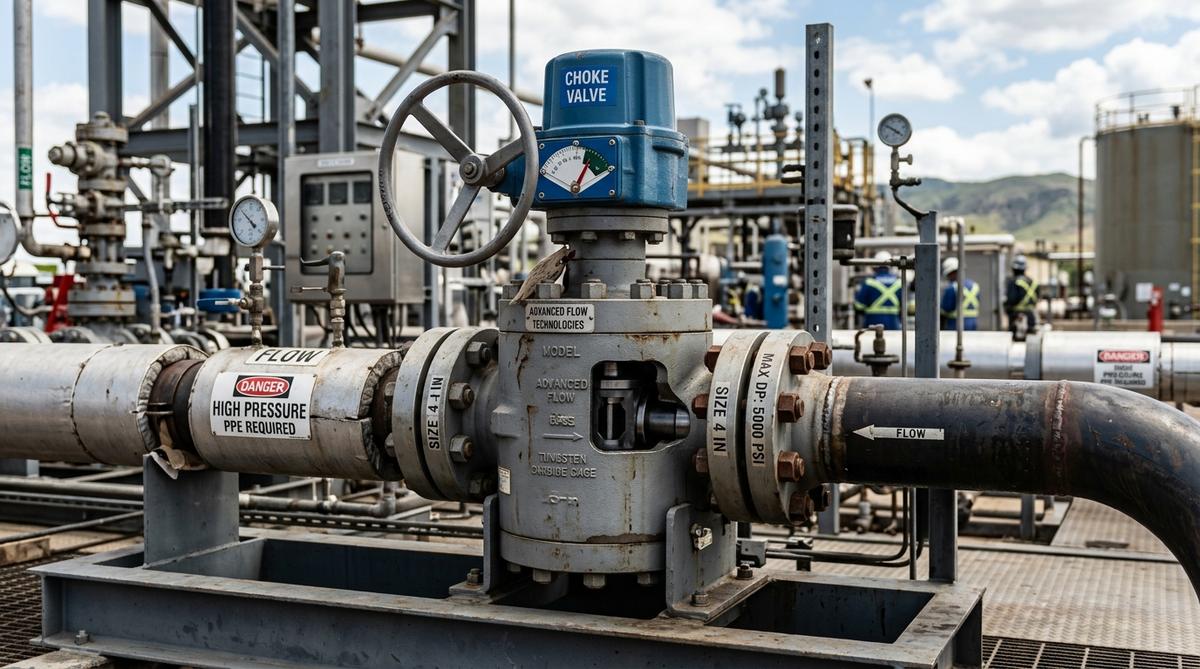

Christmas Tree Equipment
Production control and flowback operations where erosion and cavitation risks are significant.

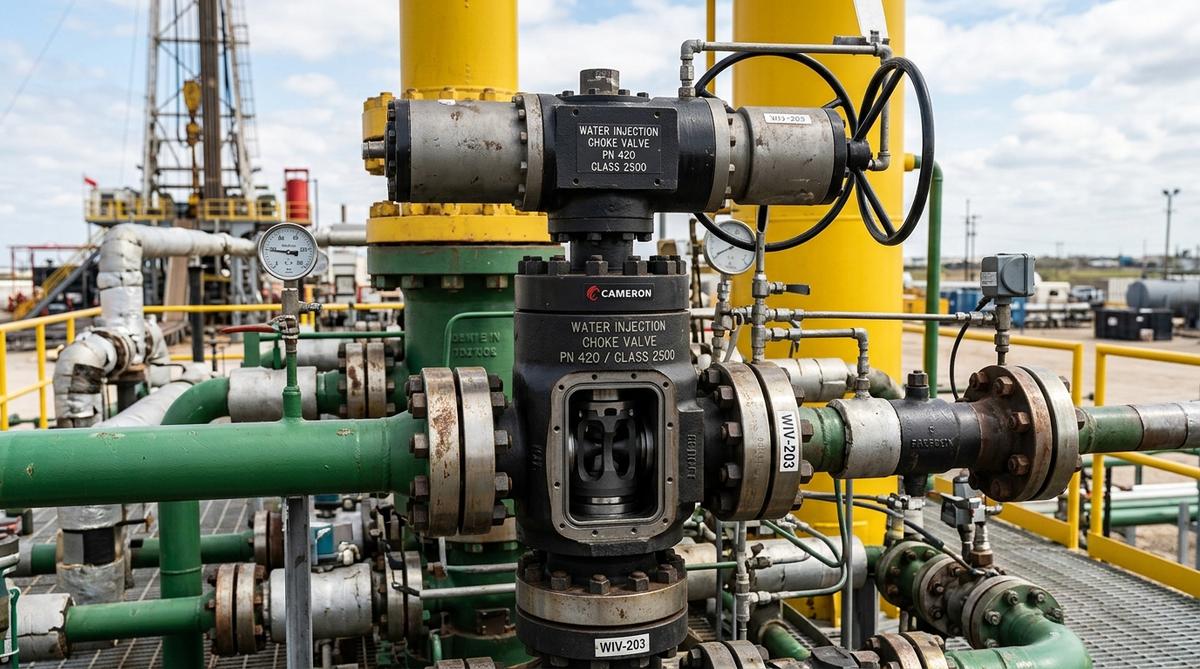

Process Control Valves
Severe-service valves requiring stable flow characteristics and high wear resistance.

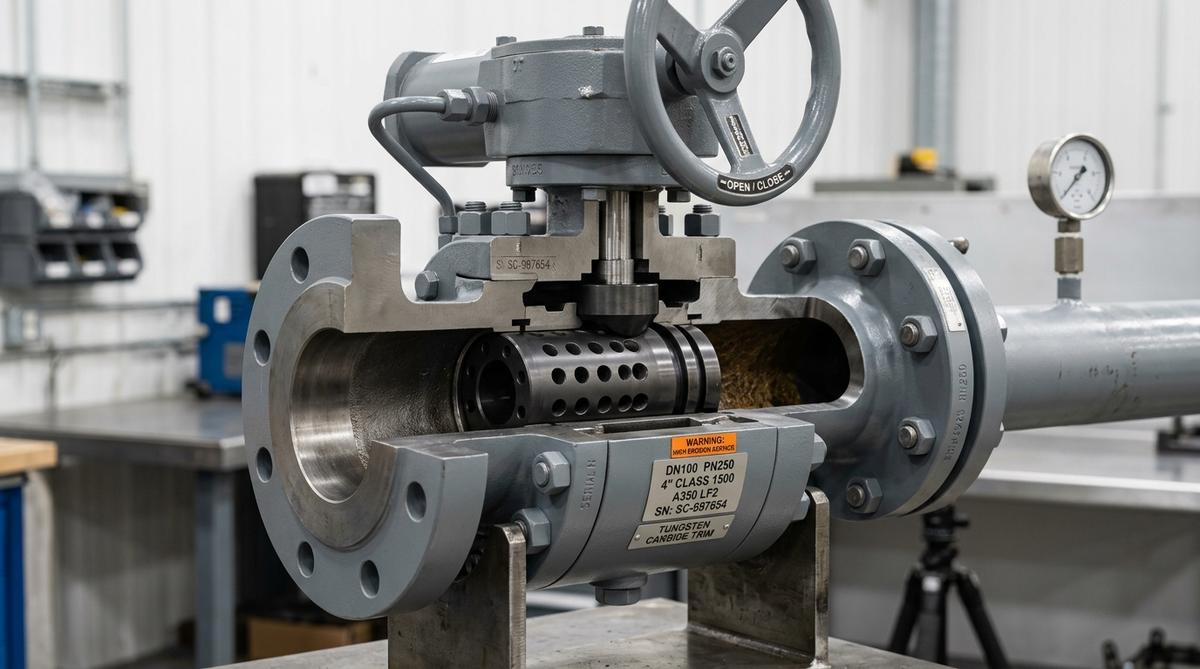

High-Differential Pressure
Process systems handling aggressive media, flashing conditions, or multi-phase flow.

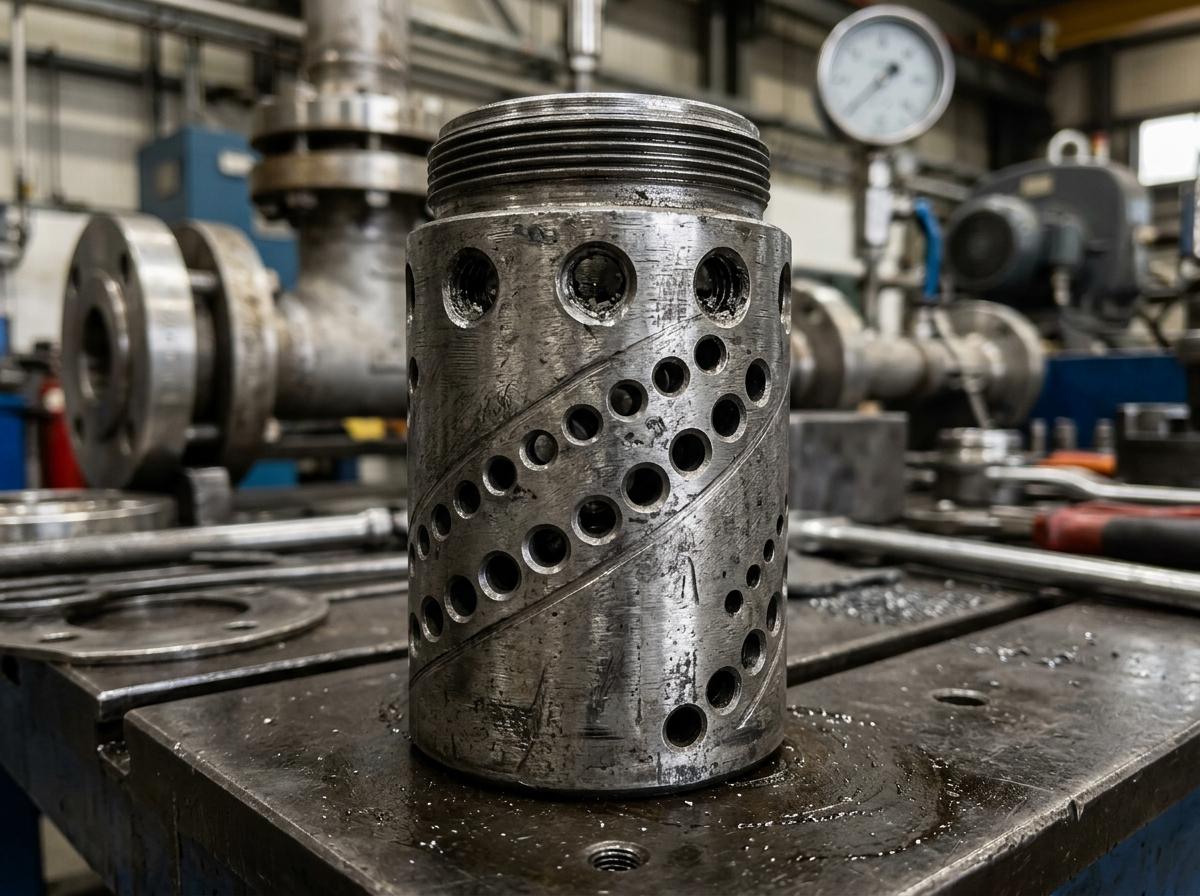

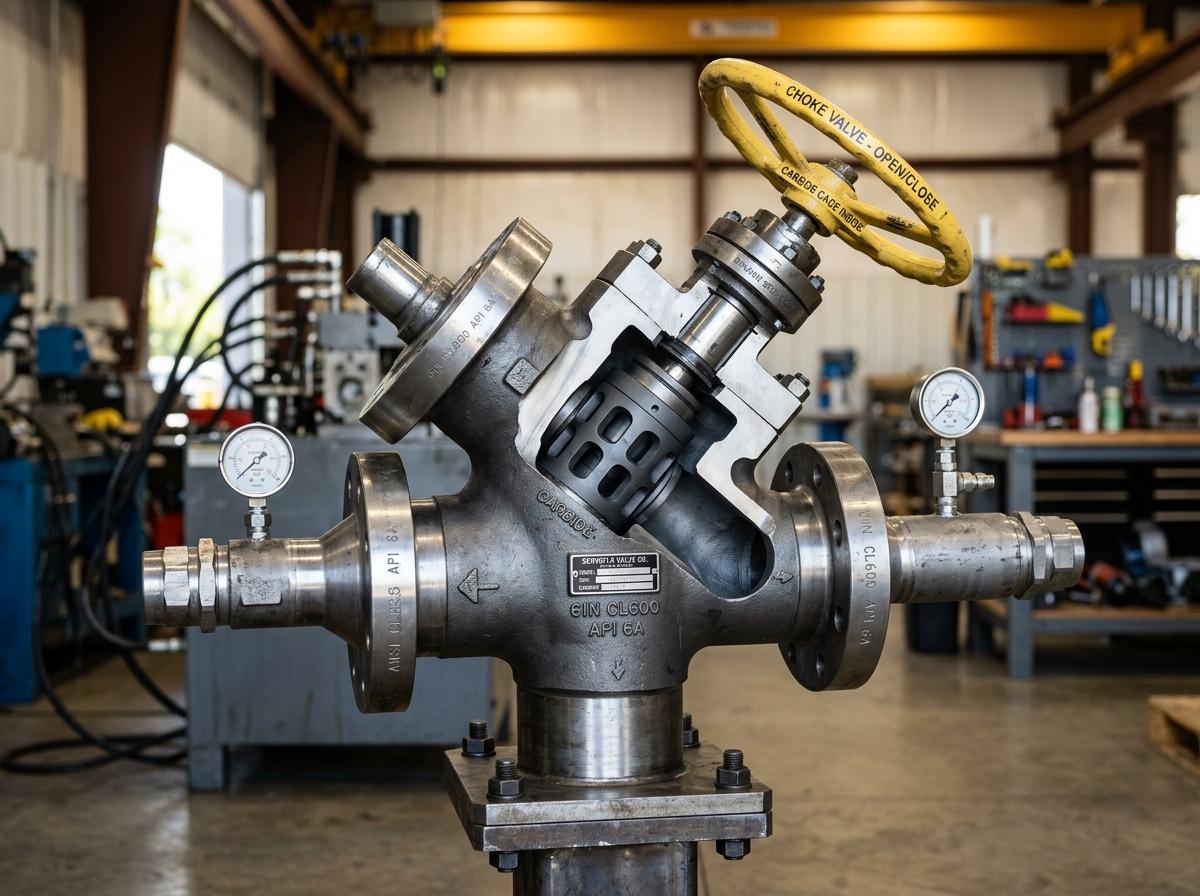

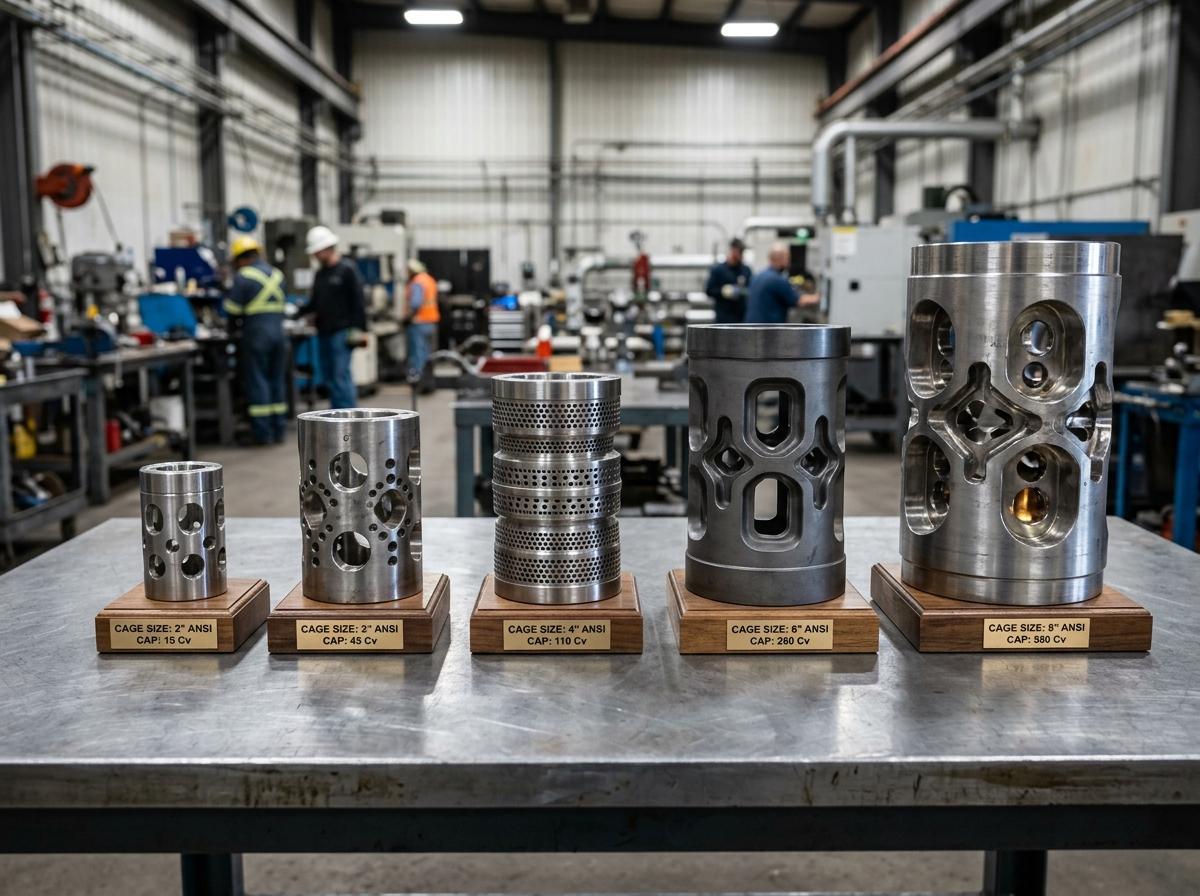

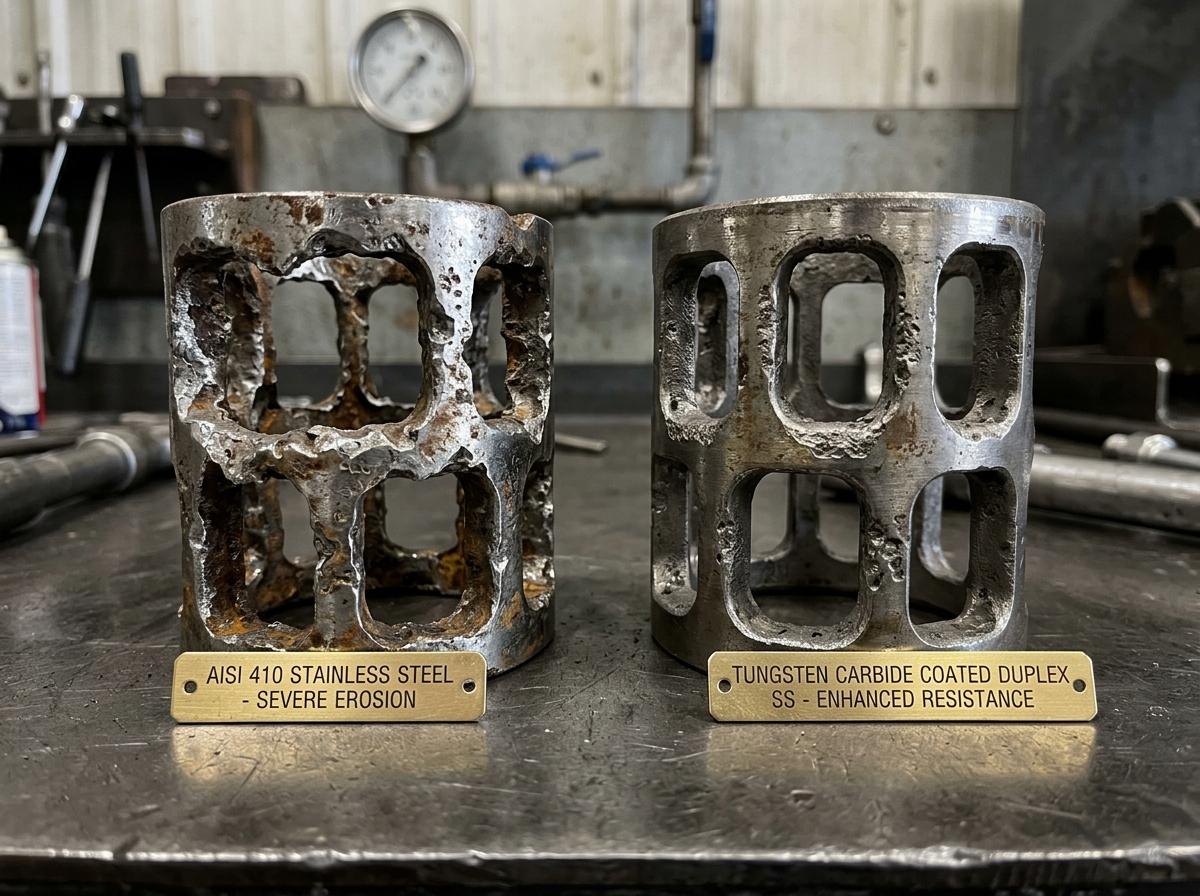

Product Gallery
Explore our precision-engineered materials and components.
Key wear-resistant throttling components for severe service
Our Choke Valve Cages are designed for severe service applications where erosion resistance, dimensional stability, and flow-path accuracy are critical. Suitable for choke valves, wellhead equipment, Christmas tree systems, flowback units, and high-pressure process control assemblies.
Choke Valve Cages are key wear-resistant throttling components used in high differential pressure, high flow velocity, solid particle-containing, and erosion-prone media control systems.

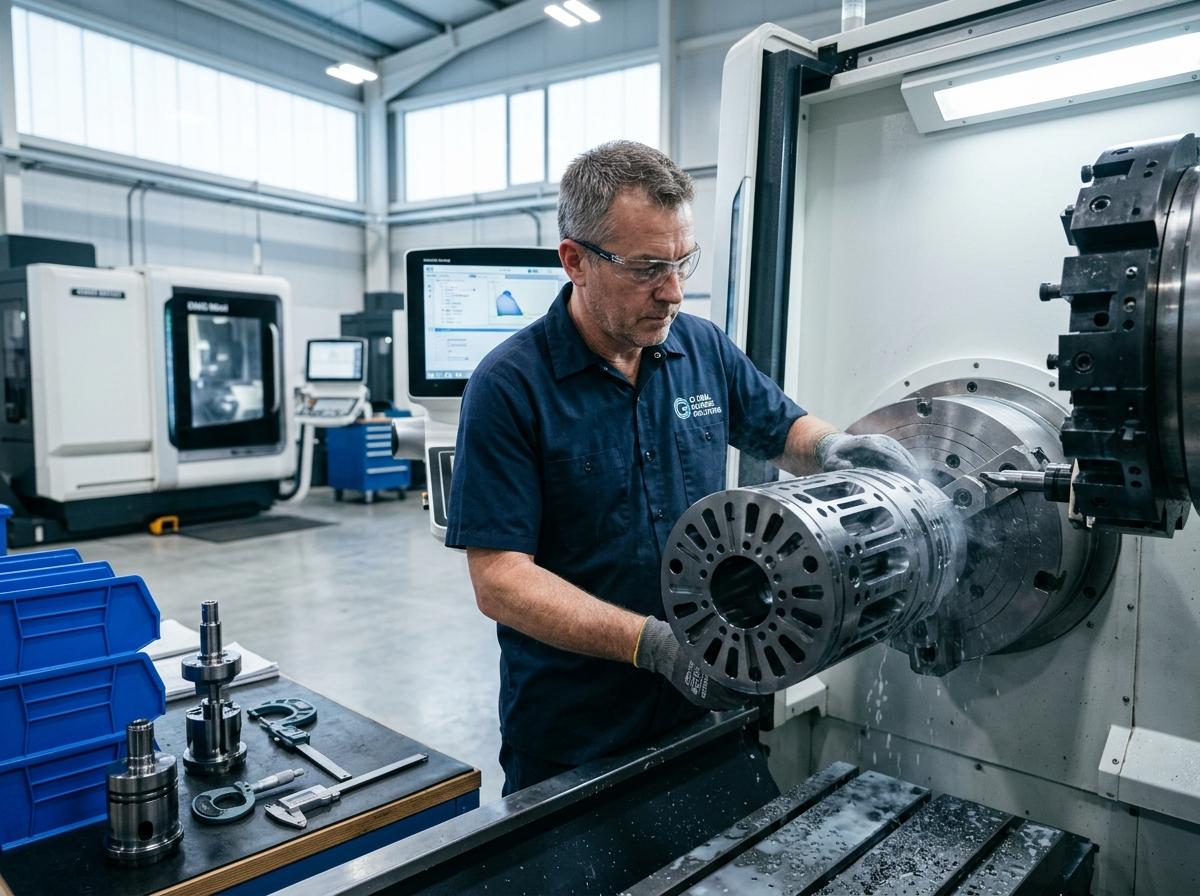

Manufacturing & Quality Control
We manufacture choke valve cages through controlled powder processing, pressing, vacuum sintering, optional HIP densification, and precision machining.
- Dimensional consistency for multiple orifices and labyrinth flow paths
- Sintering shrinkage compensation for thin-wall areas
- Orifice edge integrity and surface roughness control
- Control of cracks, edge chipping, and hidden defects
- Assembly matching control with valve cores and seats

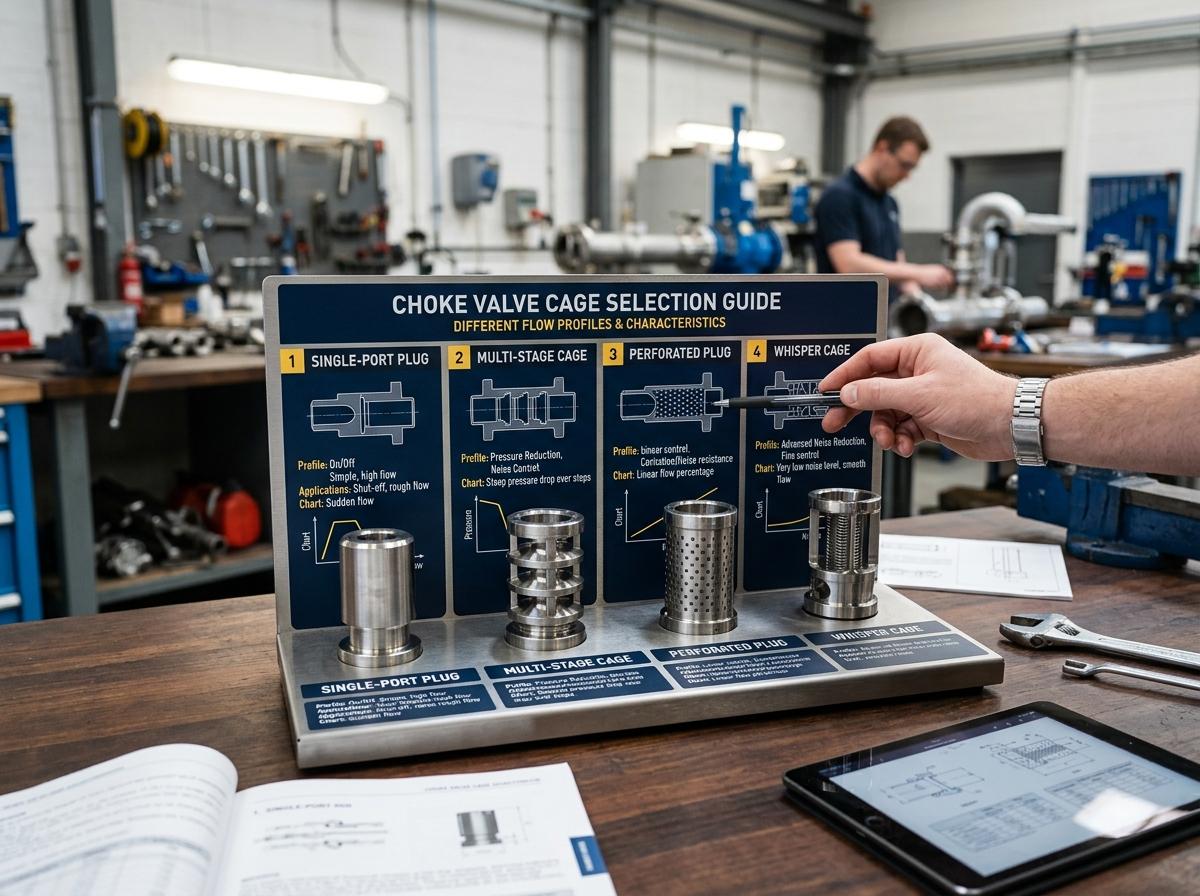

Selection Recommendations
Choose the right cage for your application:
- **High sand content and high differential pressure**: prioritize high wear-resistant grades
- **CO2, H2S, or corrosive media**: comprehensively evaluate binder phase system
- **Cavitation or flashing risks**: prioritize multi-stage pressure reduction or labyrinth structures

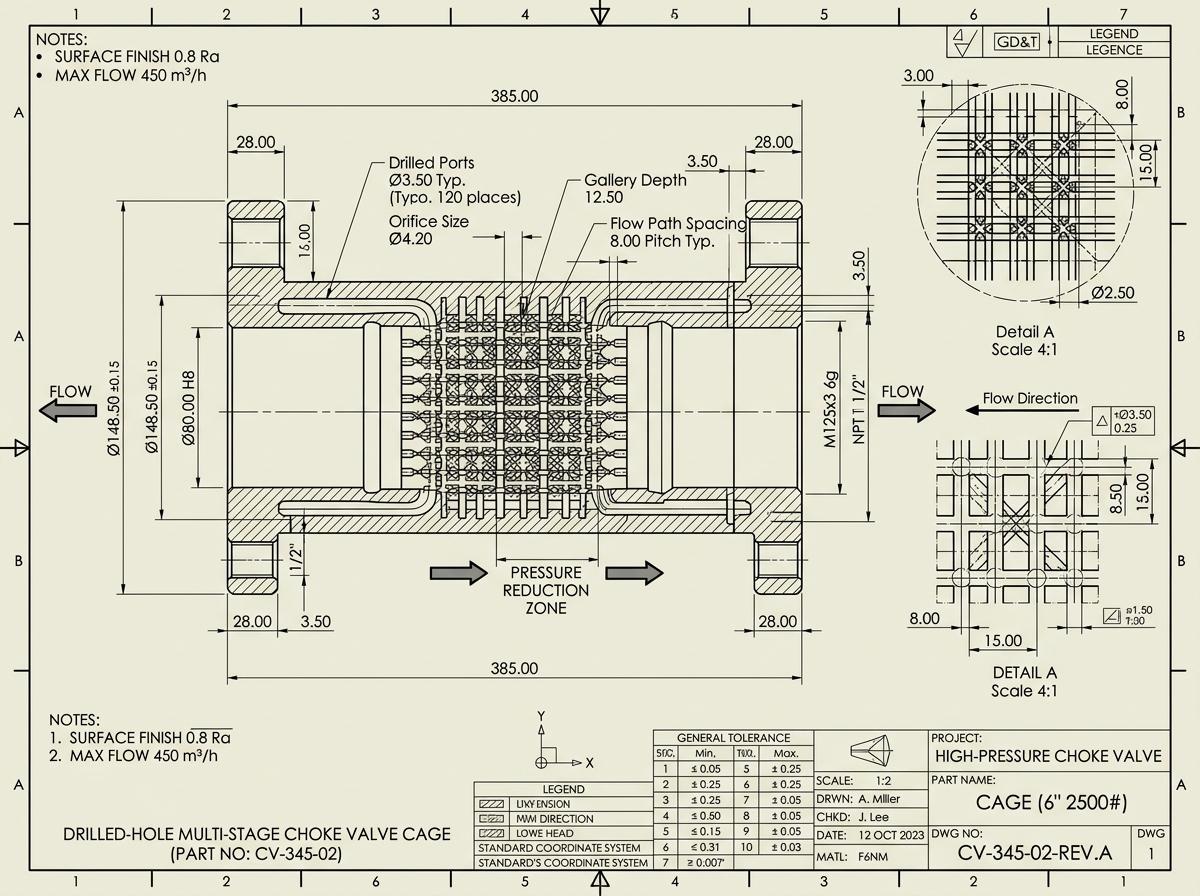

RFQ Guide
For a faster quotation, please include:

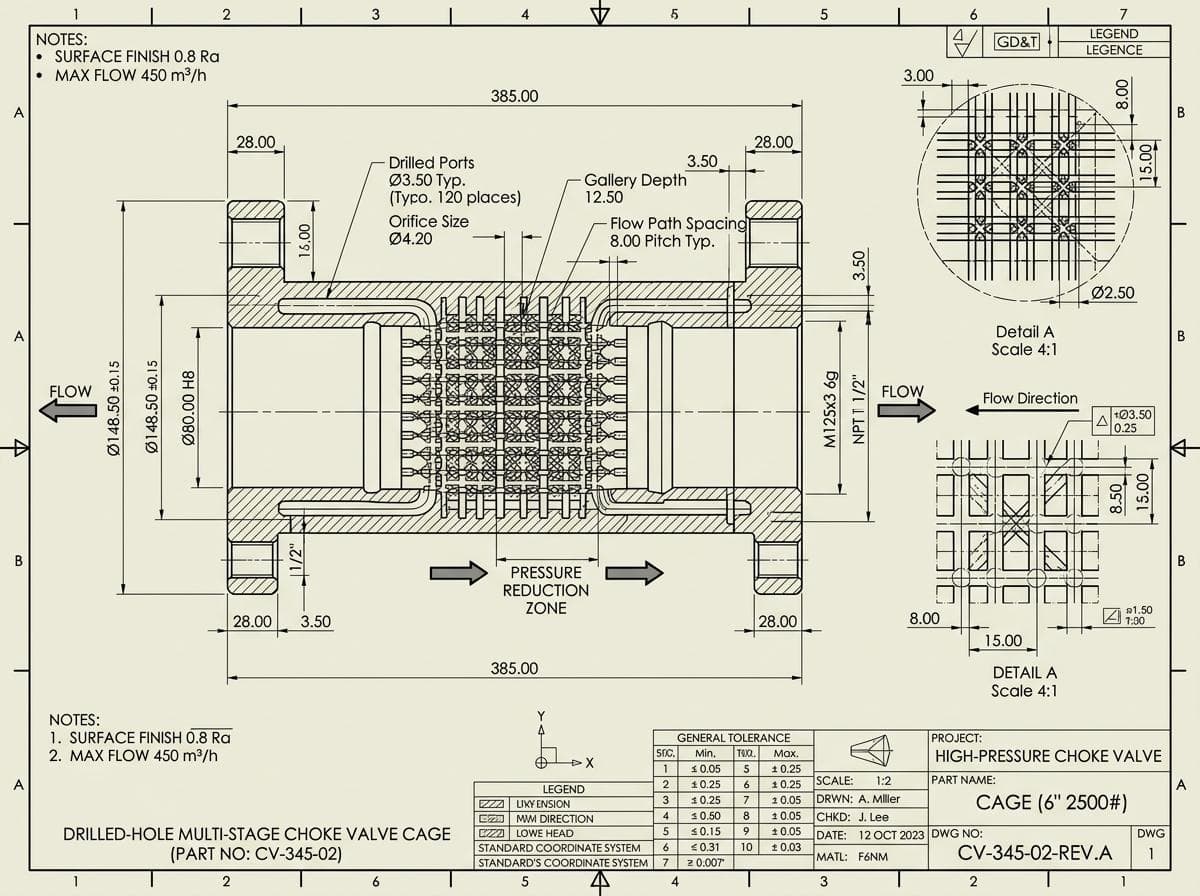

1. Valve drawing or cage geometry details
2. Media type, sand content, and corrosive components
3. Pressure drop, flow direction, and operating conditions
4. Required structure such as multi-hole, window, or labyrinth
5. Material preference such as WC-Co or WC-Ni
6. Quantity, project stage, and destination market
Looking for Choke Valve Cages for Severe Service Conditions?
Share your valve drawing, service conditions, and media details, and our team will recommend a suitable carbide cage solution.
