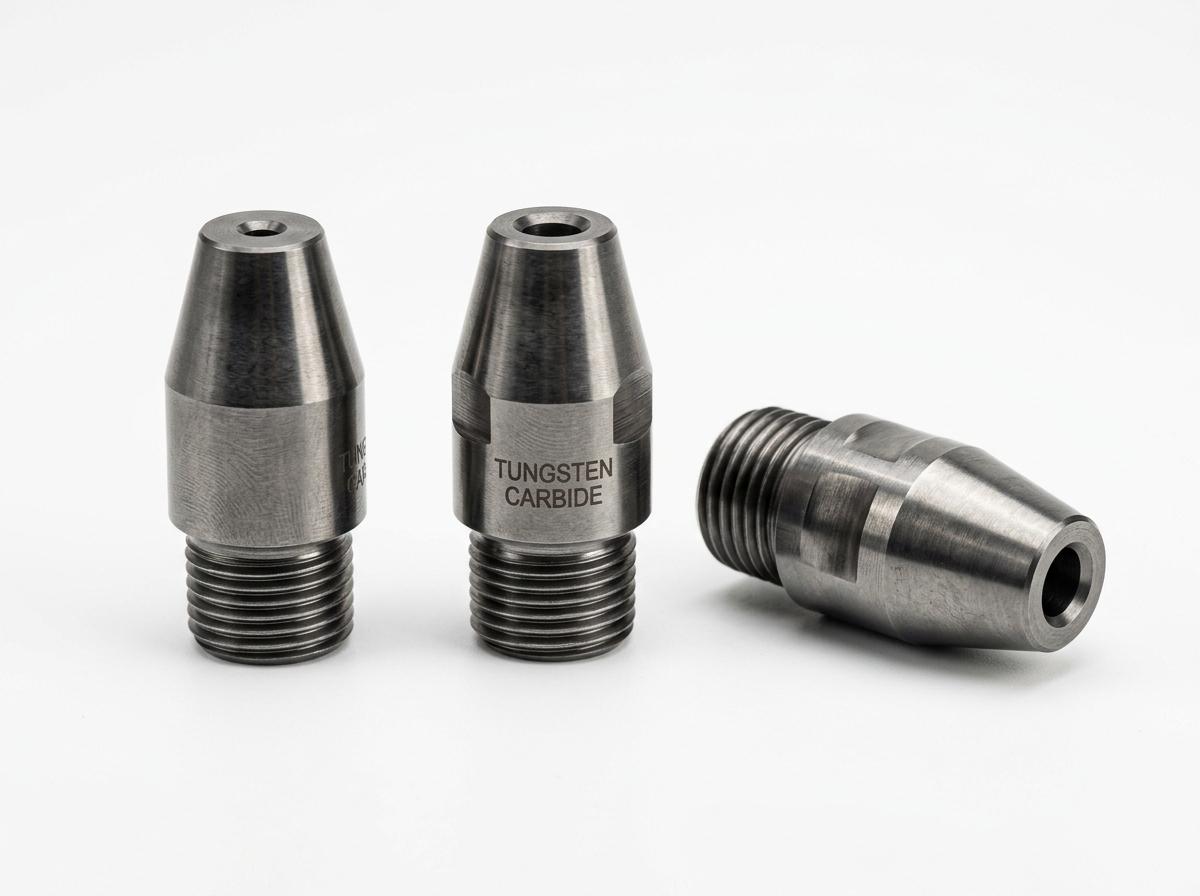

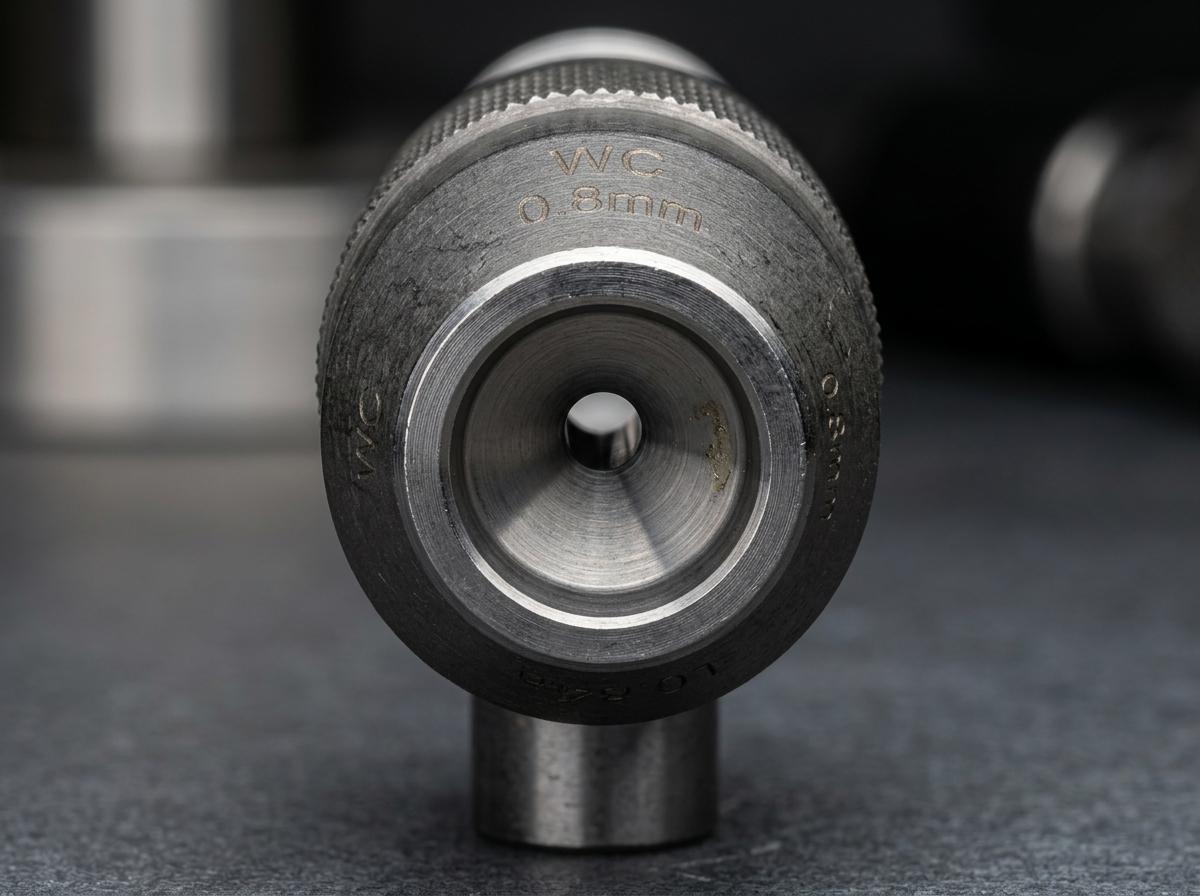

Tungsten Carbide Nozzles for Abrasive and High-Pressure Applications
Wear-resistant carbide nozzles engineered for sandblasting, spraying, injection molding, and high-velocity fluid applications requiring exceptional erosion resistance and dimensional stability.
Talk on WhatsAppKey Features & Benefits
Manufacturing details, inspection discipline, and RFQ clarity for industrial buyers.
Superior Erosion Resistance
Tungsten carbide provides outstanding resistance to abrasive particles, extending service life 10-20 times longer than steel or ceramic alternatives in sandblasting applications.
Precise Orifice Geometry
Tight tolerance control on bore diameter and entrance geometry ensures consistent flow characteristics and spray patterns for critical applications.
High Hardness
HRA 88-92 hardness range provides excellent wear resistance while maintaining sufficient toughness to resist chipping and cracking under impact loading.
Multiple Configurations

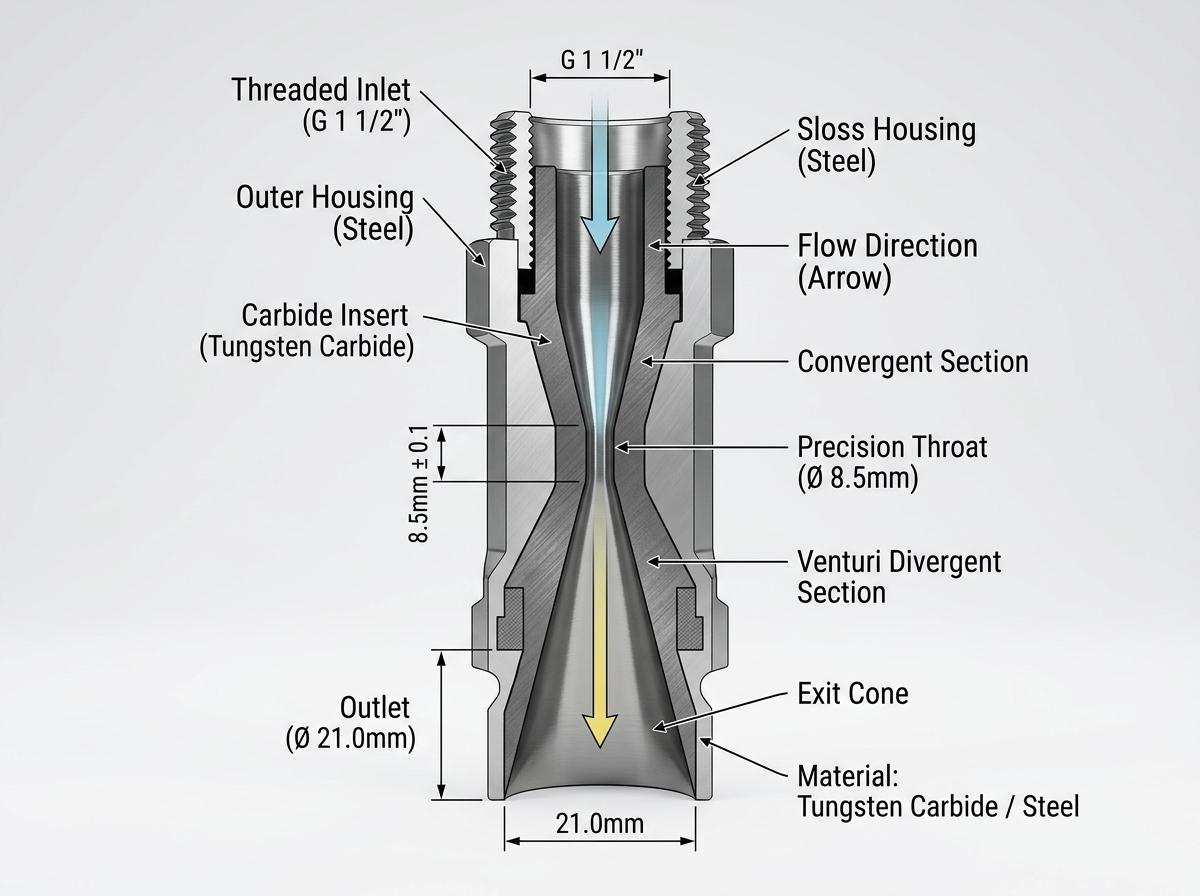

Available in straight bore, convergent-divergent, and custom profile designs to optimize flow velocity, pattern, and efficiency for specific applications.
Thermal Stability
Maintains dimensional integrity at elevated temperatures, suitable for hot gas injection, thermal spray, and high-temperature fluid applications.
Custom Mounting Options
Standard thread connections (NPT, BSPT, metric) or custom flange configurations available to match existing equipment and systems.
Hard Proof for Buyers
Production, inspection, packing, and delivery evidence for Tungsten Carbide Nozzles for Abrasive and High-Pressure Applications
Industrial buyers need more than broad claims like high performance or stable quality. This section shows the practical proof points we can discuss before quotation: factory workflow, inspection control, report availability, MOQ, lead time, packing, and export support.
What a serious RFQ can request
Factory photos
Equipment / process route
Inspection records
Material report sample
Packing photos
MOQ and lead time
Export terms
Industry use case
Inspection equipment and records
Dimensional checks, surface review, batch identification, and inspection records can be aligned with the product drawing, specification, or repeat-order requirement.
Drawing and specification review
Engineering RFQs can include drawings, samples, grade targets, tolerance notes, working conditions, and report requirements before quotation.
Export packing and shipment support
Protective packing, labeling, batch notes, and export-ready documentation are considered before sample, trial, or production shipment.
Procurement details we can confirm before order
MOQ: confirmed by grade, size, drawing complexity, and trial or repeat-order demand
Sample / trial order: available for qualified RFQs where size, quantity, and application are clear
Lead time: quoted by stock status, tooling route, machining complexity, inspection scope, and order quantity
Reports: material report, dimensional inspection record, and shipment photos can be discussed before order
Tolerance: typical capability is reviewed against drawings, process route, and critical working surfaces
Export support: protective packing, marking, trade terms, and destination requirements can be aligned before shipment
Quality system: batch traceability, incoming material review, and final inspection are available for repeat supply
Confidentiality: drawings and samples are used for quotation/manufacturability review; NDA available on request
Technical Specifications
Detailed parameters for your engineering requirements
| Material | WC-Co Tungsten Carbide |
| Hardness | HRA 88-92 |
| Density | 14.0-15.0 g/cm³ |
| Orifice Range | 0.5mm - 25mm |
| Length Range | 10mm - 150mm |
| Connection Types | NPT, BSPT, Metric, Flange, Custom |
| Applications | Sandblasting, Spraying, Injection, Fluid Control |
Application Areas
Application-specific supply for industrial production and maintenance teams.

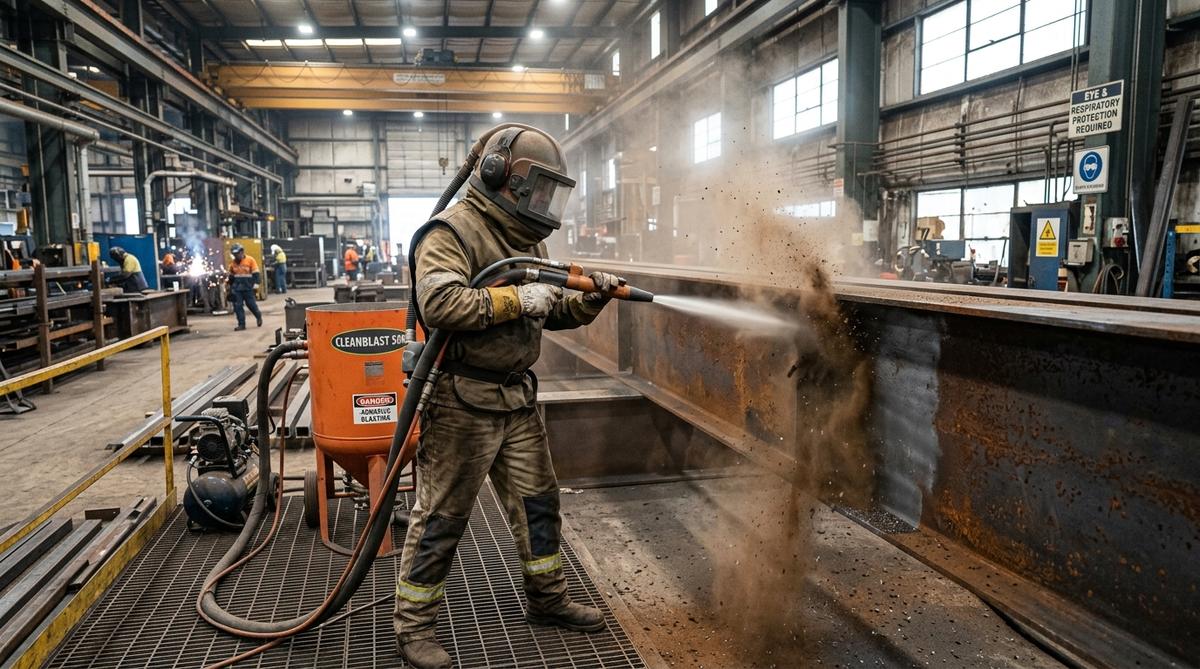

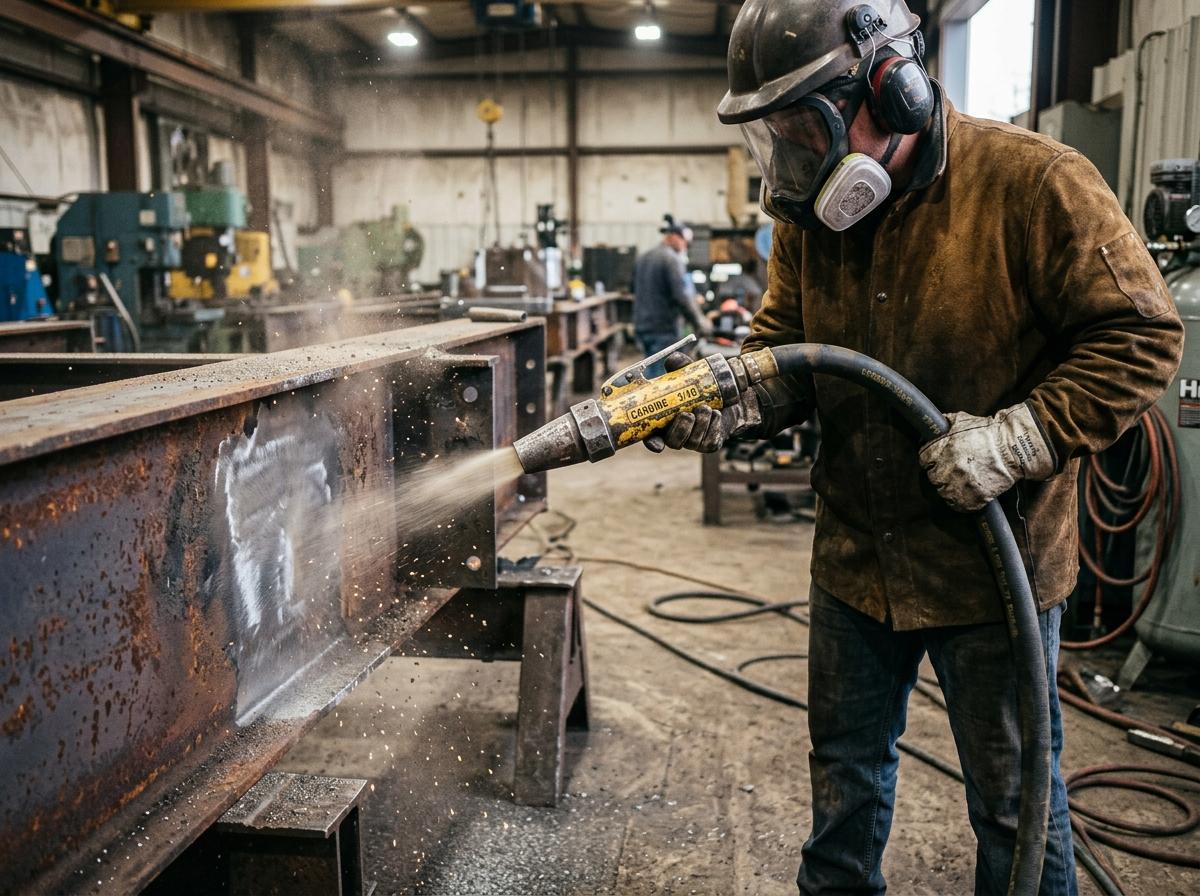

Sandblasting & Shot Peening
Carbide blast nozzles for surface preparation, cleaning, and shot peening applications with extended service life in highly abrasive environments.

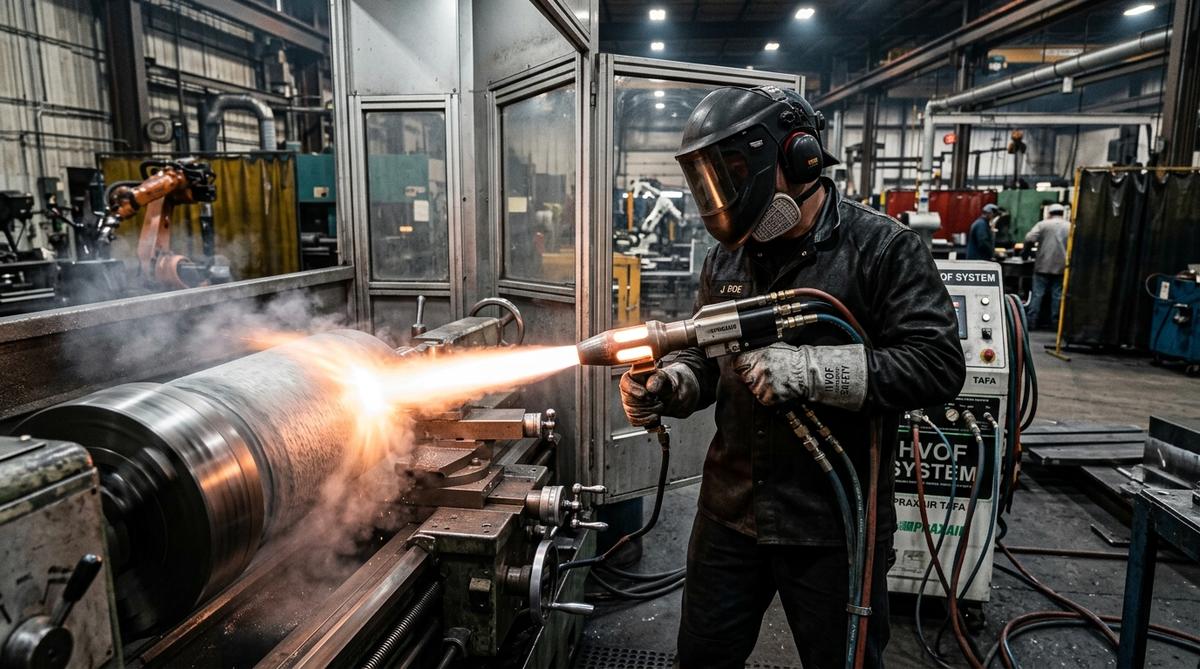

Thermal Spray Coating
HVOF and plasma spray nozzles delivering precise powder or wire feed for coating applications requiring tight dimensional control and consistent spray patterns.

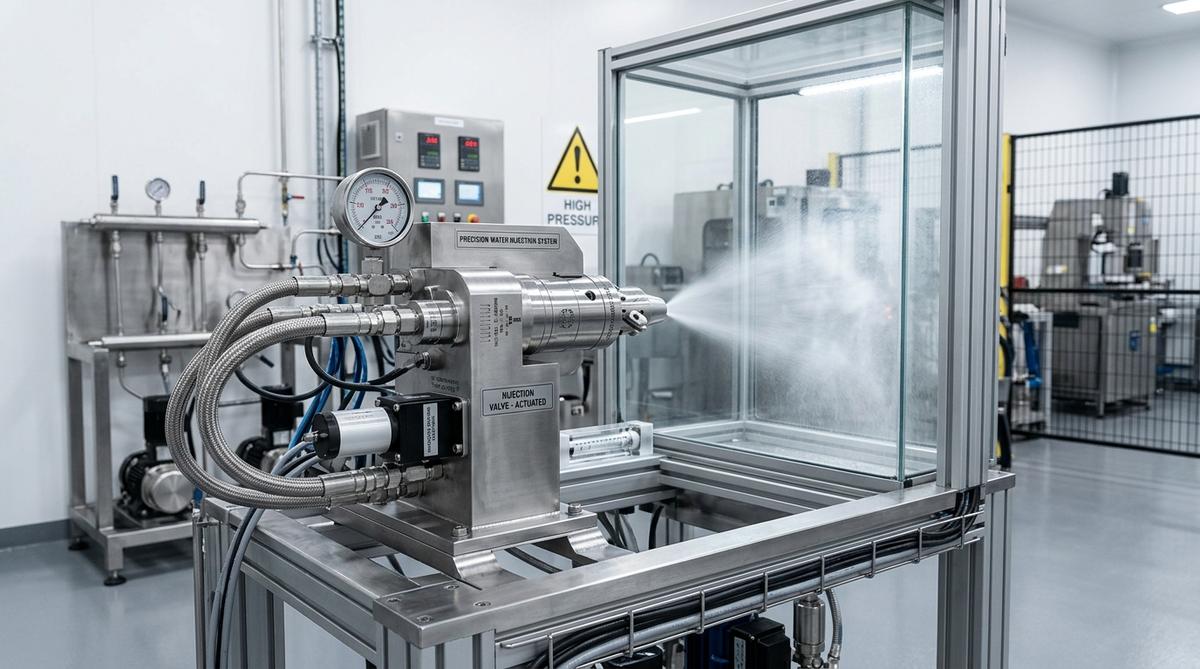

Fluid Injection Systems
High-pressure injection nozzles for water jet cutting, chemical injection, and precision fluid metering in demanding industrial environments.

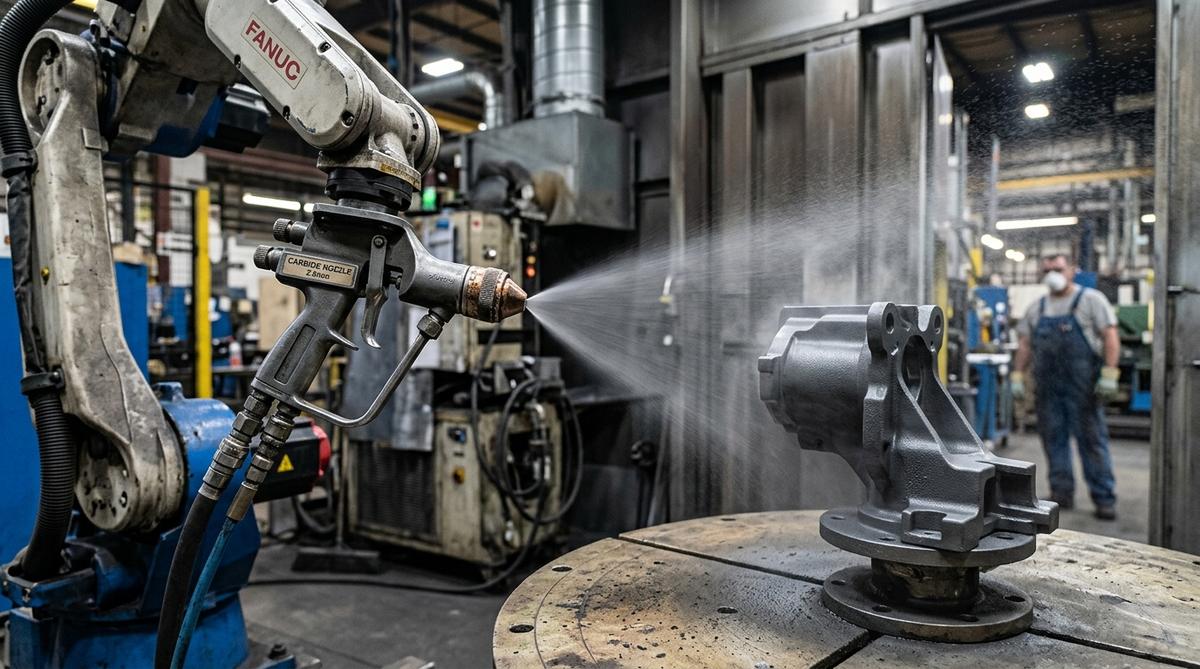

Spray & Atomization
Atomization nozzles for coating, painting, and chemical spray applications requiring fine droplet size and uniform distribution patterns.

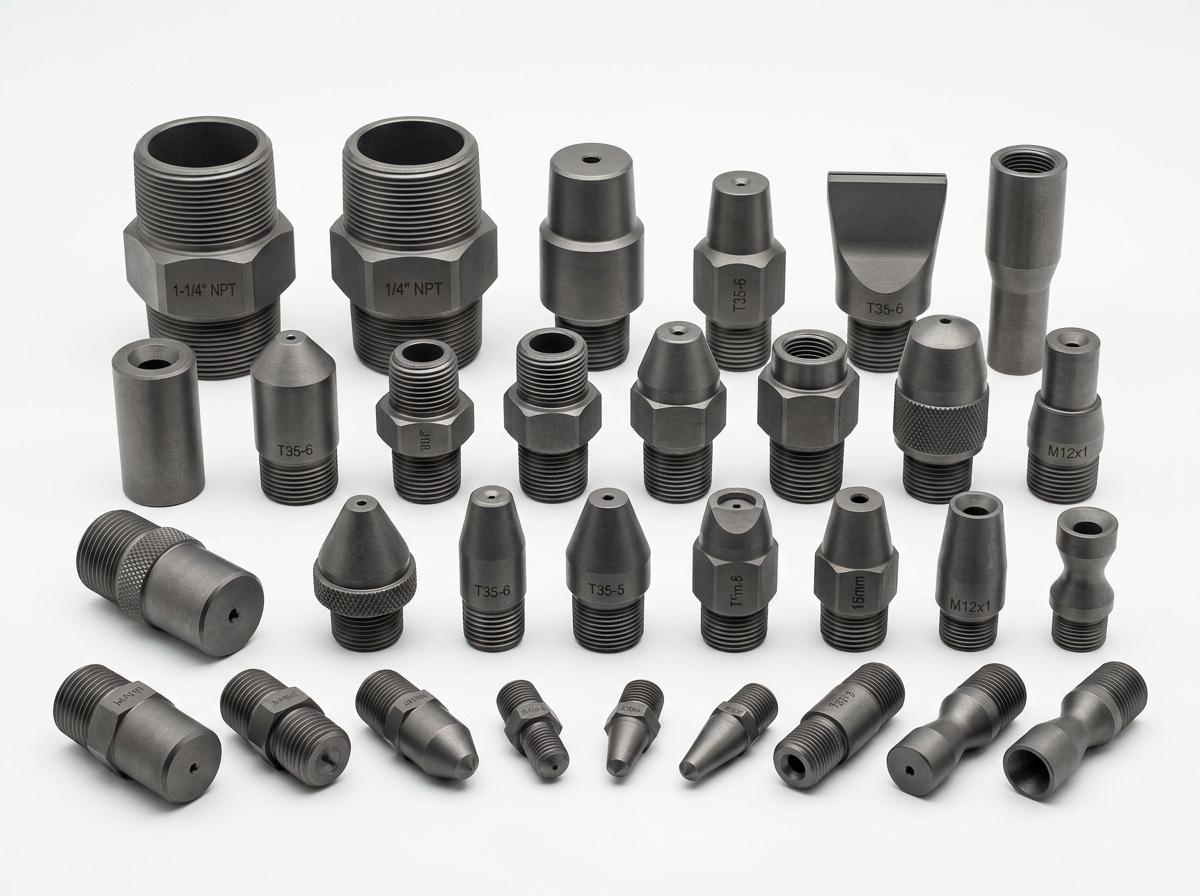

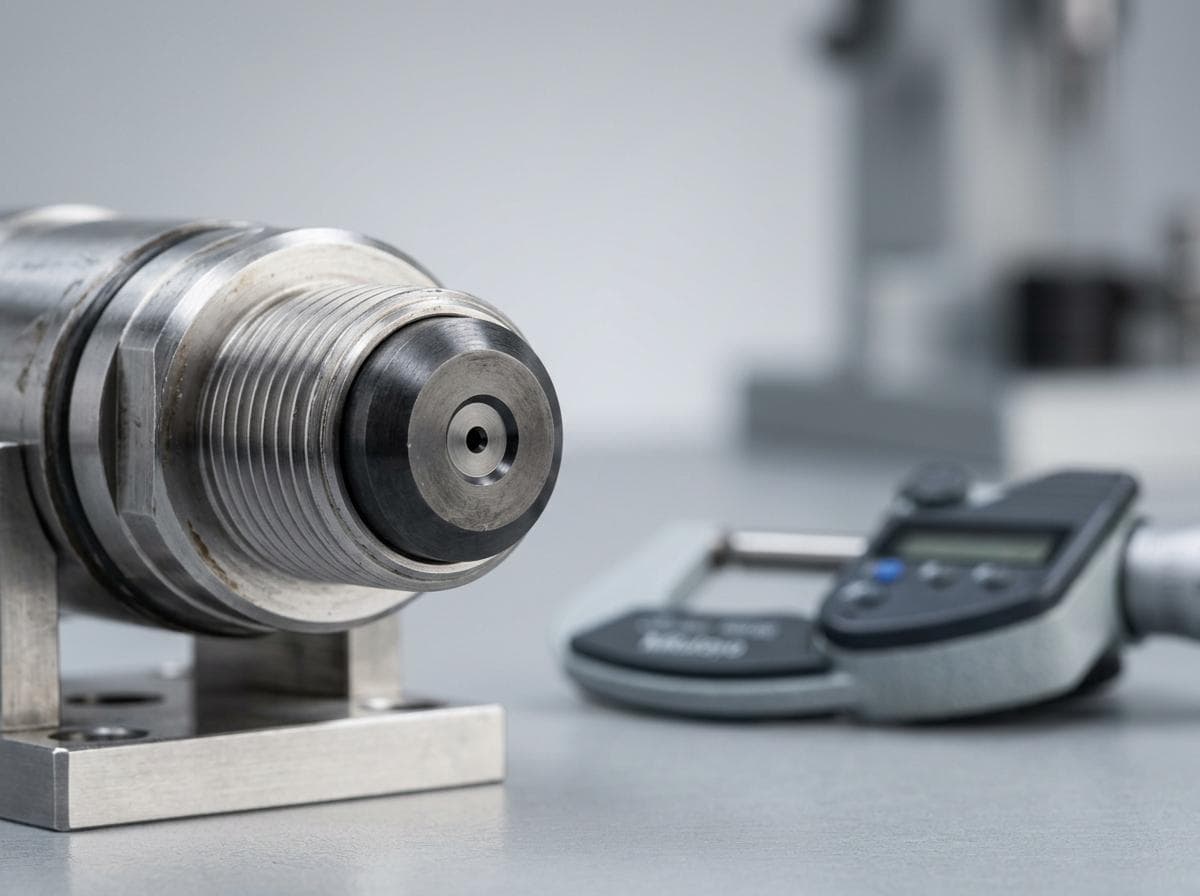

Product Gallery
Explore our precision-engineered materials and components.
Engineered for extreme wear conditions
Carbide nozzles are critical components in applications where abrasive particles, high-velocity fluids, or elevated temperatures would rapidly degrade conventional materials. Our tungsten carbide nozzles are manufactured from premium-grade WC-Co materials with optimized grain structure to balance hardness and toughness for each specific application.
The exceptional wear resistance of tungsten carbide translates directly into reduced downtime, lower replacement frequency, and more consistent process performance over the nozzle's extended service life.
Manufacturing & Quality Control
Each carbide nozzle is produced through a controlled manufacturing process:
- **Powder Selection**: Sub-micron WC powder with controlled cobalt content for target hardness and toughness
- **Precision Compacting**: Isostatic pressing for uniform density distribution throughout the nozzle body
- **Vacuum Sintering**: High-temperature sintering to achieve full densification and optimal microstructure
- **CNC Machining**: Precision grinding of orifice, seats, and mounting surfaces to tight tolerances
- **Flow Testing**: Air and fluid flow verification for critical applications
- **Dimensional Inspection**: 100% measurement of bore diameter, length, and thread specifications

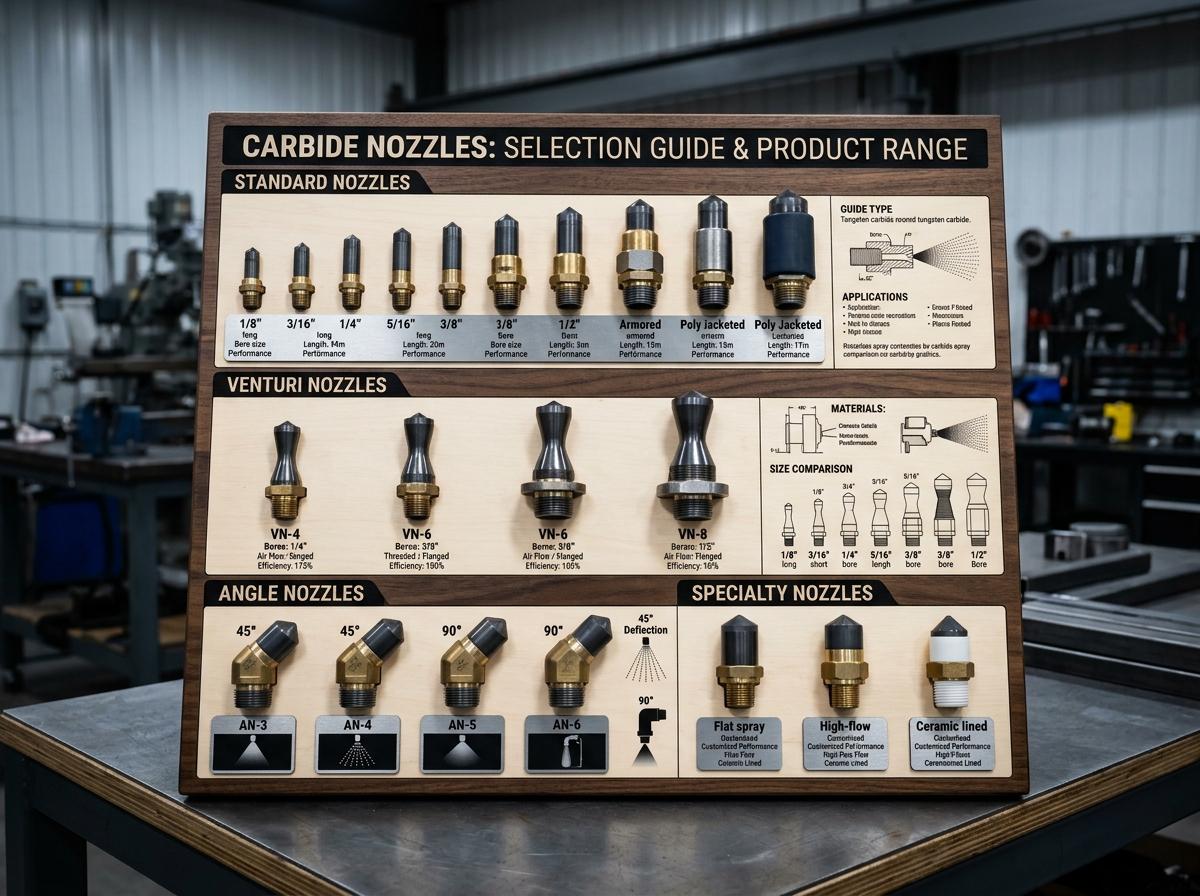

Selection Guidelines
Choosing the right carbide nozzle depends on several application factors:
- **Abrasive Type**: Harder abrasives (aluminum oxide, silicon carbide) require higher carbide grades than softer media (glass beads, plastic)
- **Particle Velocity**: Higher velocities accelerate wear; consider larger safety margins for high-pressure applications
- **Carrier Medium**: Air, water, or other fluids affect wear rate and may require specific surface treatments
- **Operating Temperature**: Elevated temperatures may affect carbide properties; consult for applications above 400°C
- **Flow Requirements**: Orifice size and geometry determine flow rate and velocity; match to system capacity
- **Mounting Configuration**: Ensure compatibility with existing equipment connections

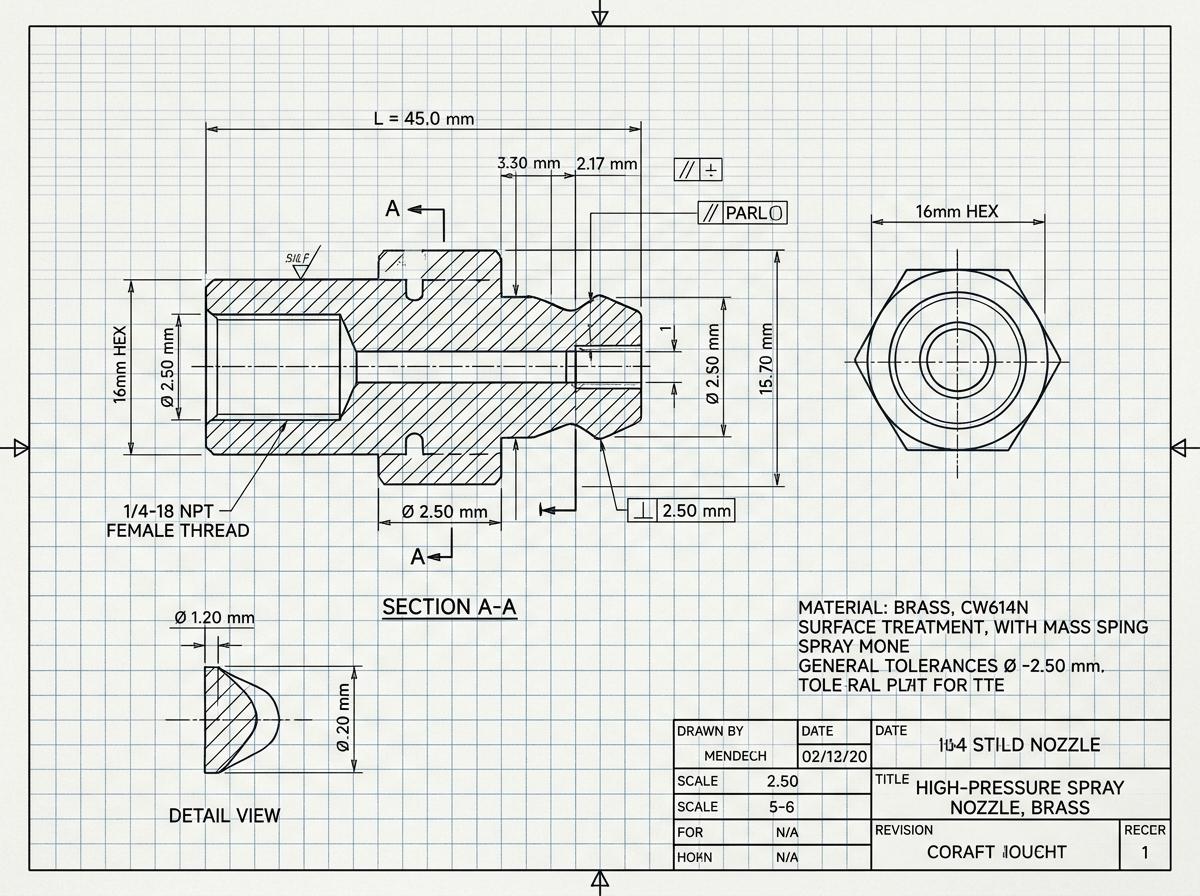

RFQ Guide for Accurate Quotation
To receive an accurate quotation for carbide nozzles, please provide:
1. **Orifice Diameter**: Required bore size and tolerance (e.g., 8mm ±0.02mm)
2. **Overall Length**: Total nozzle length and any critical dimensions
3. **Mounting Type**: Thread specification (NPT, BSPT, M), flange pattern, or custom configuration
4. **Application**: Sandblasting, thermal spray, water jet, or other specific use
5. **Operating Conditions**: Pressure, temperature, abrasive type, and carrier medium
6. **Quantity**: Annual usage for potential volume pricing
7. **Special Requirements**: Surface finish, coating, or custom geometry needs
Need Carbide Nozzles for Abrasive or High-Pressure Applications?
Share your orifice size, mounting configuration, and operating conditions. We will recommend the optimal nozzle grade and geometry for your application.
